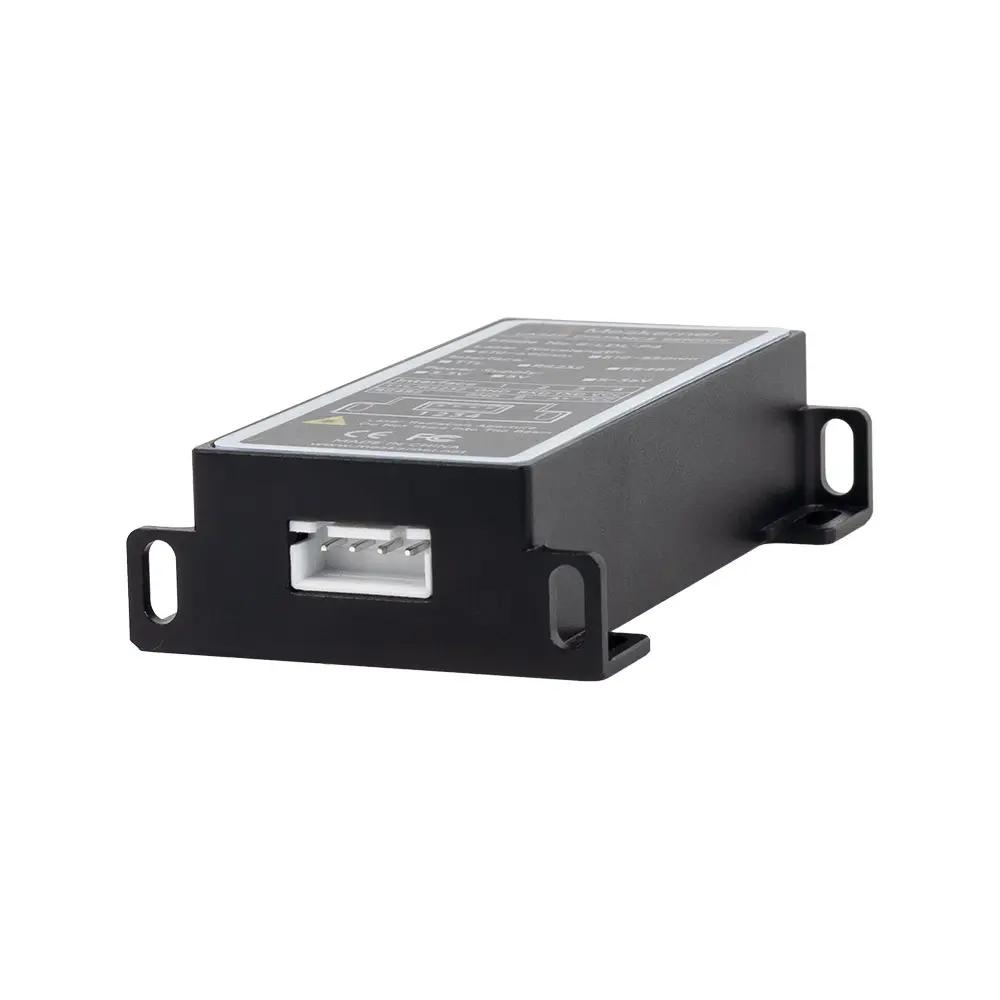

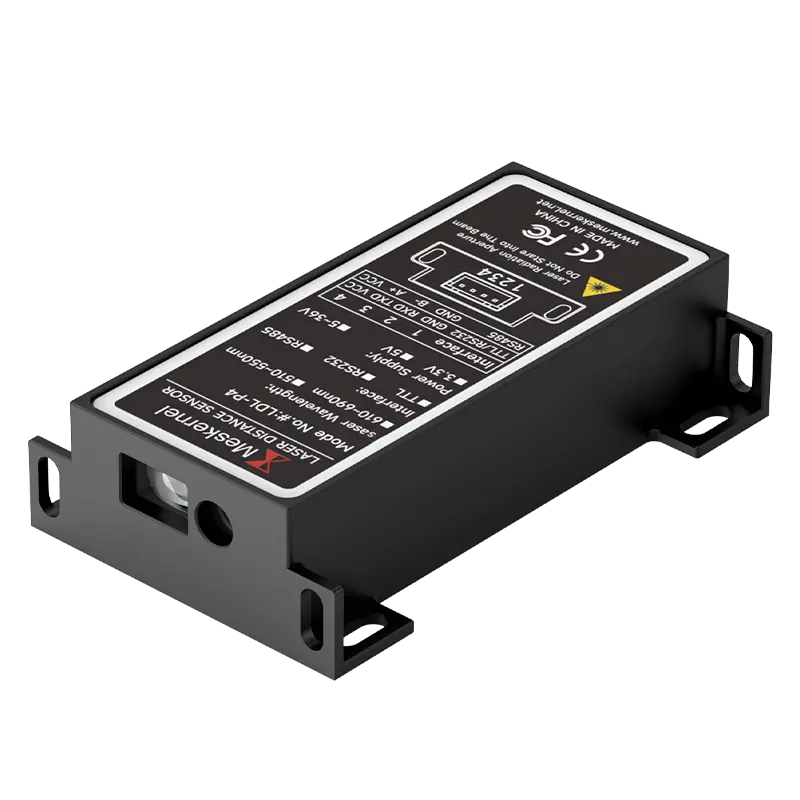

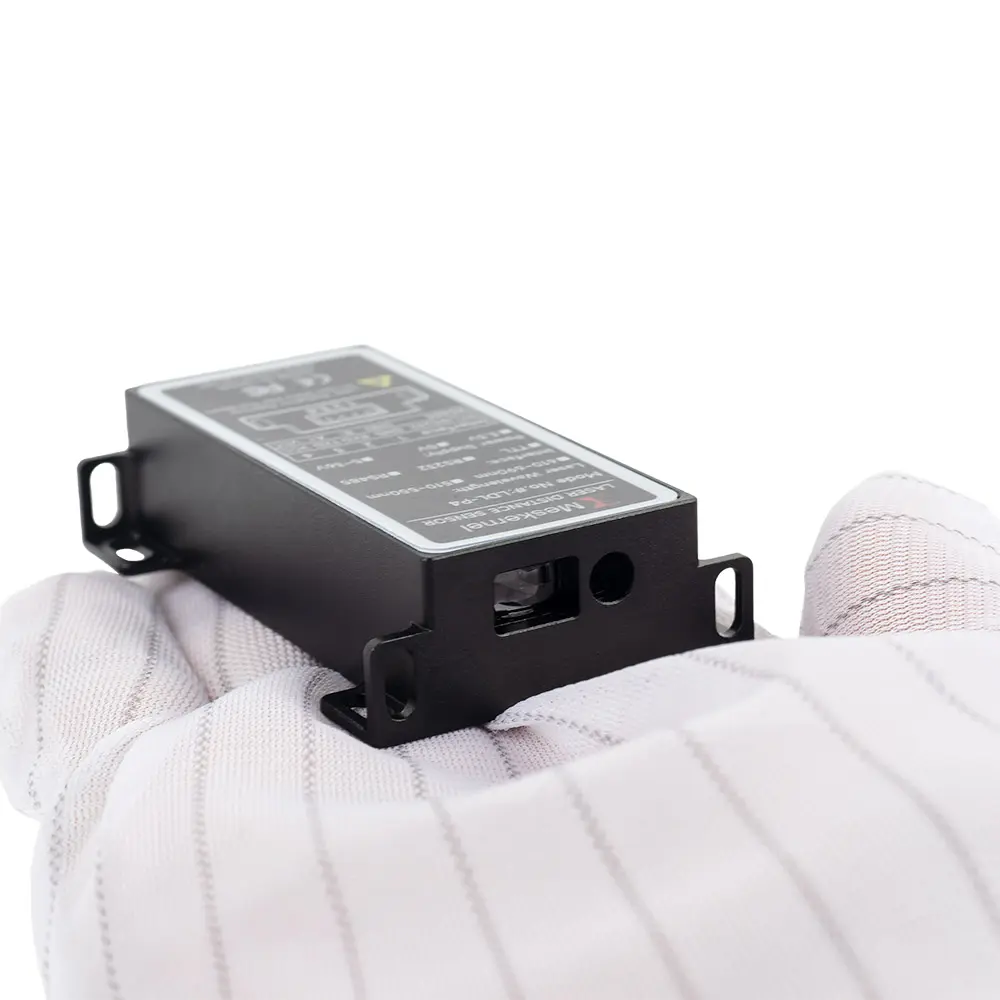

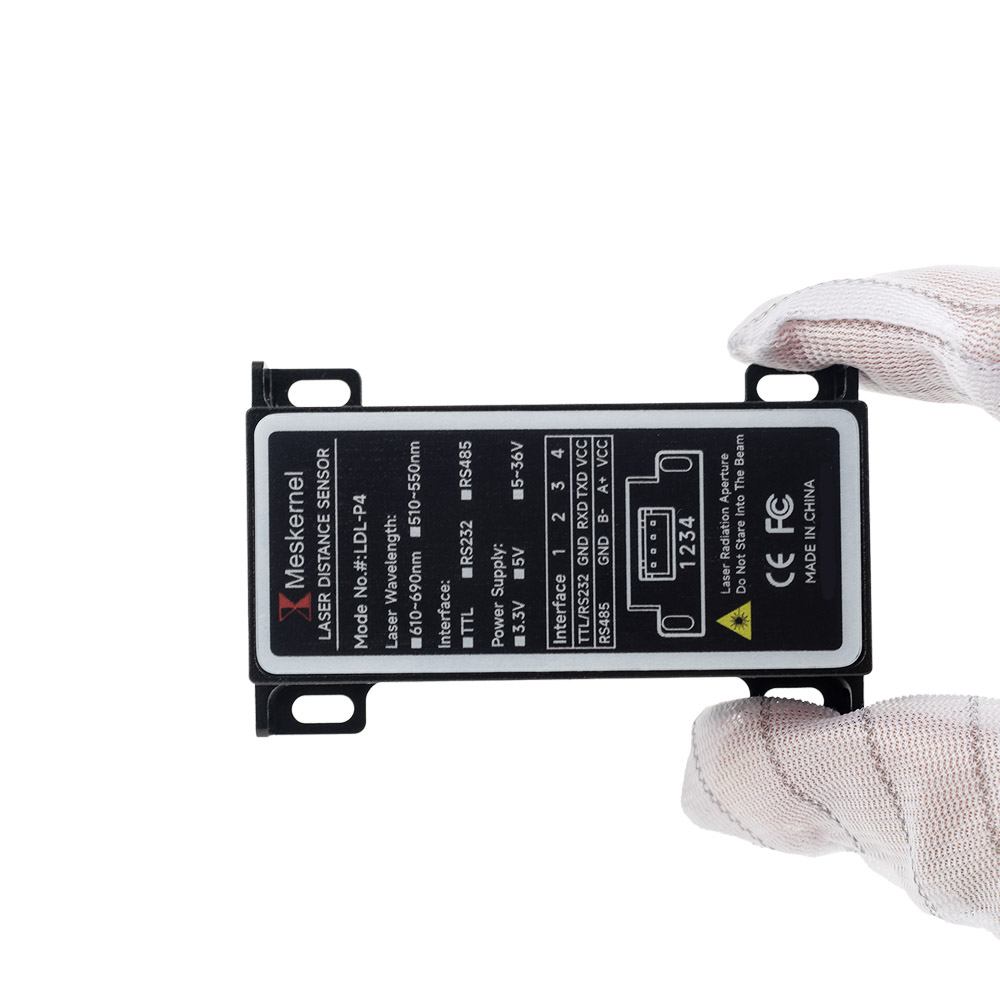

LDL-P4 IP54 Laser Distance Measure Sensors 40m

Model:

LDL-P4

 / Custom OEM & ODM available

★★★★★
  • Customizable Measurement Range & Frequency — Adjustable sensing distance and update rate to match your exact application.
  • Flexible Interface & Communication — TTL / UART / RS-485 / RS-232 / CAN and more, configurable to your system.
  • Rugged, IP-Rated Housing — Industrial aluminum enclosures with customizable IP protection, built for harsh environments.
Range

10 / 20 / 40 m

Accuracy

±(3 mm + D×1/10000)

Frequency

3 / 20 Hz

Weight

52g

Request a Quote

In Stock : Yes  ·  Lead time : 7–15 days  ·  MOQ : 1 pc (OEM from 500)

Key Specifications

Range

10 / 20 / 40 m

Accuracy

±(3 mm + D×1/10000)

Frequency

3 / 20 Hz

Interface

USART / RS485 / RS232 / I2C / Modbus / CAN

Laser Class

650–660 nm, Class II

IP Rating

IP54

Dimensions
Housing

Product Overview

Laser Distance Measure Sensors – Available in 10m / 20m / 40m ranges. Accuracy: ±(3mm + D/10000), 1mm resolution. Supports 3Hz/20Hz continuous measurement. Customizable interface (RS-485/RS-232/TTL), voltage (3.3V or 5–36V), and baud rate. Compact (68×42×17.4mm, 52g), 0–40°C. Ideal for robotics, drone altimetry, and industrial automation.

20+ years laser ranging expertise
In-house R&D & manufacturing
Strict quality control & calibration
Fast response & global delivery

Product Diagram

Technical Reference

Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.

📋

Full Parameters

LDL-S Parameters

Performance, optical, electrical & communication parameters at a glance

🔌

Wiring Diagram

Laser measurement module → control device connection (with pull-up resistors)

Downloads

Pick the document you need and we’ll email it to you directly. All files are sent manually by our team — usually
within 1 business day.
📄

Datasheet

Full specifications
📘

User Manual

Setup & wiring
⬇

Product Catalog

Selection Guide

Request a file

Select the document you need and we’ll email it to you directly — usually within 1 business day.

Download

🔒 Your information is only used to deliver the requested file.

Related Products

LDJU High Speed Laser Distance Sensor 25m
650–660 nm, Class II

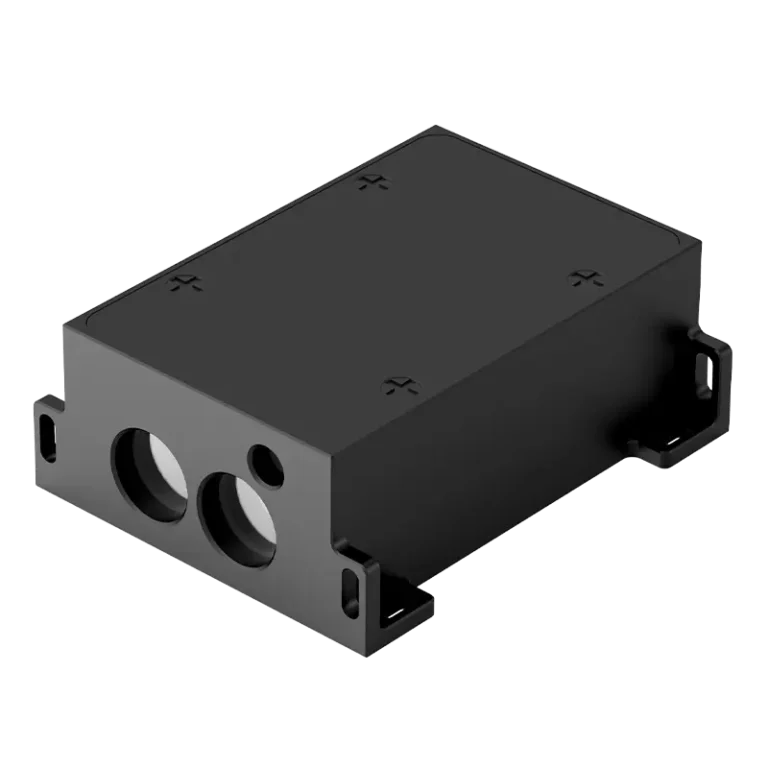

PTFS-P4 IP54 Sensor to Measure Distance 400m
905 nm, Class 1 / Class 2

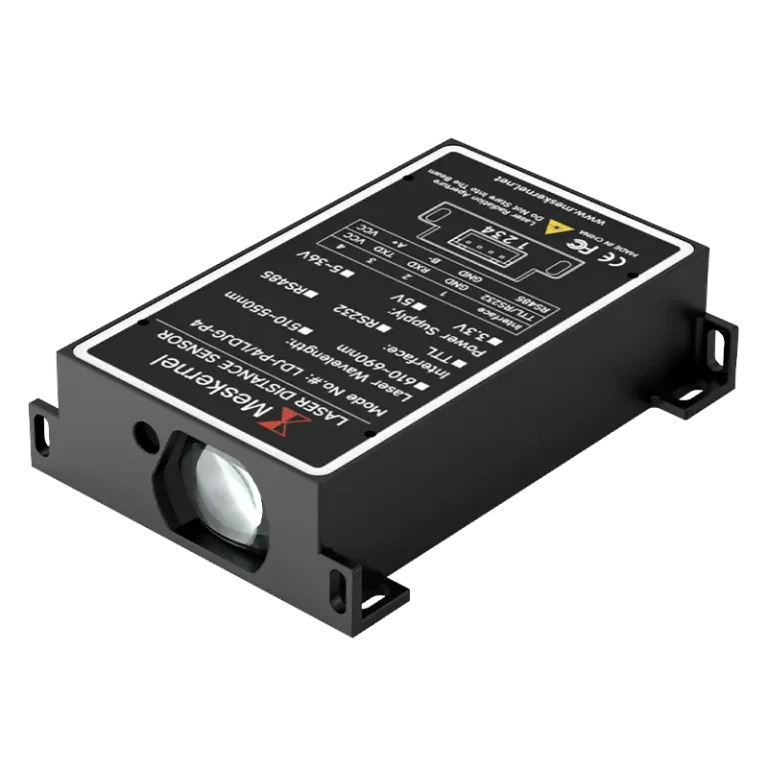

LDJ-P4 IP54 Laser Distance Sensor 200m
