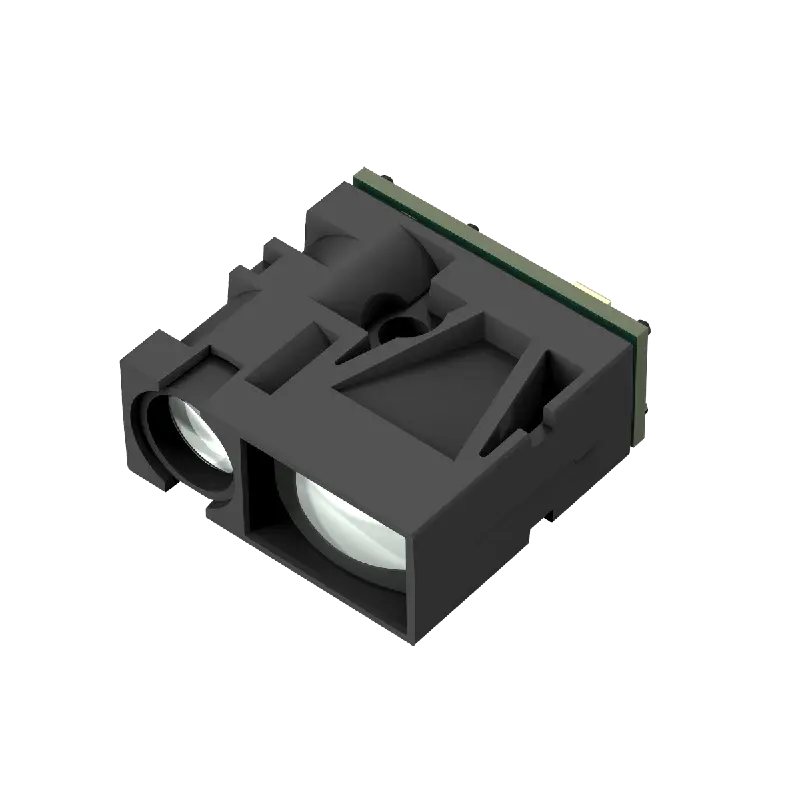

LDL-S 30Hz Compact Distance Sensor
LDL-S 30Hz Compact Distance Sensor - Image 2
LDL-S 30Hz Compact Distance Sensor - Image 3
LDL-S 30Hz Compact Distance Sensor - Image 4
Categories:

LDL-S 30Hz Compact Distance Sensor

Model:

LDL-S

 / Custom OEM & ODM available

★★★★★
  • Customizable Measurement Range & Frequency — Adjustable sensing distance and update rate to match your exact application.
  • Flexible Interface & Communication — TTL / UART / RS-485 / RS-232 / CAN and more, configurable to your system.
  • Rugged, IP-Rated Housing — Industrial aluminum enclosures with customizable IP protection, built for harsh environments.
Range

0.03 – 80 m

Accuracy

±(1 mm + D×1/10000)

Frequency

30 Hz

Weight

3g

Request a Quote

In Stock : Yes  ·  Lead time : 7–15 days  ·  MOQ : 1 pc (OEM from 500)

Key Specifications

Range

0.03 – 80 m

Accuracy

±(1 mm + D×1/10000)

Frequency

30 Hz

Interface

TTL / USART

Laser Class

650–660 nm, Class II

IP Rating
Dimensions

16.57mm × 17.03mm × 7.01mm (L × W × H)

Housing

Product Overview

LDL-S Compact Distance Sensor (16.57×17.03×7.01mm, 3g) with 0.03–80m range, ±(1mm + D/10000) accuracy, Class II laser, 30Hz measurement rate, and low power consumption. Ideal for drones, robots, and embedded ranging applications. TTL/USART interface.

20+ years laser ranging expertise
In-house R&D & manufacturing
Strict quality control & calibration
Fast response & global delivery

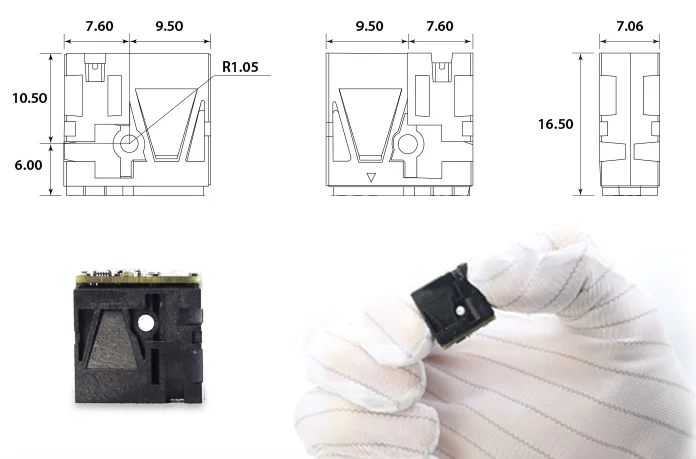

Product Diagram

Technical Reference

Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.

📋

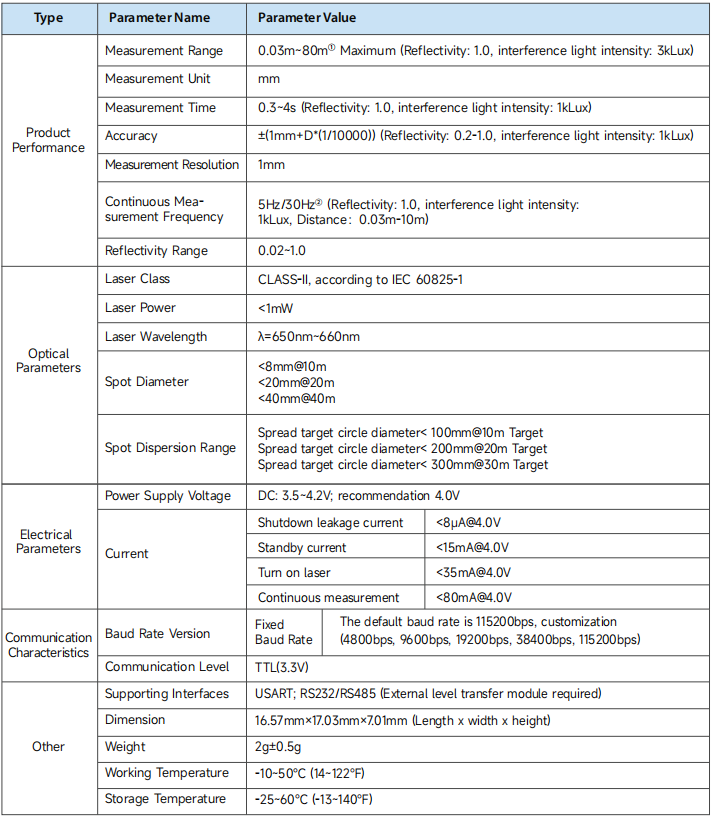

Full Parameters

LDL-S Parameters

Performance, optical, electrical & communication parameters at a glance

🔌

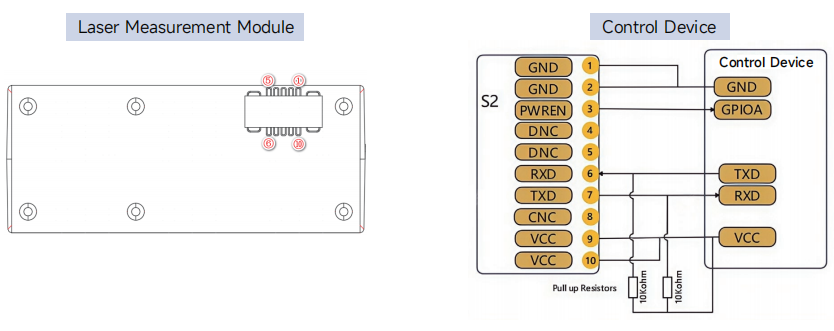

Wiring Diagram

Laser measurement module → control device connection (with pull-up resistors)

Downloads

Pick the document you need and we’ll email it to you directly. All files are sent manually by our team — usually
within 1 business day.
📄

Datasheet

Full specifications
📘

User Manual

Setup & wiring
⬇

Product Catalog

Selection Guide

Request a file

Select the document you need and we’ll email it to you directly — usually within 1 business day.

Download

🔒 Your information is only used to deliver the requested file.

Related Products

LDL-S 30Hz High-frequency Optical Rangefinder Module
650–660 nm, Class II

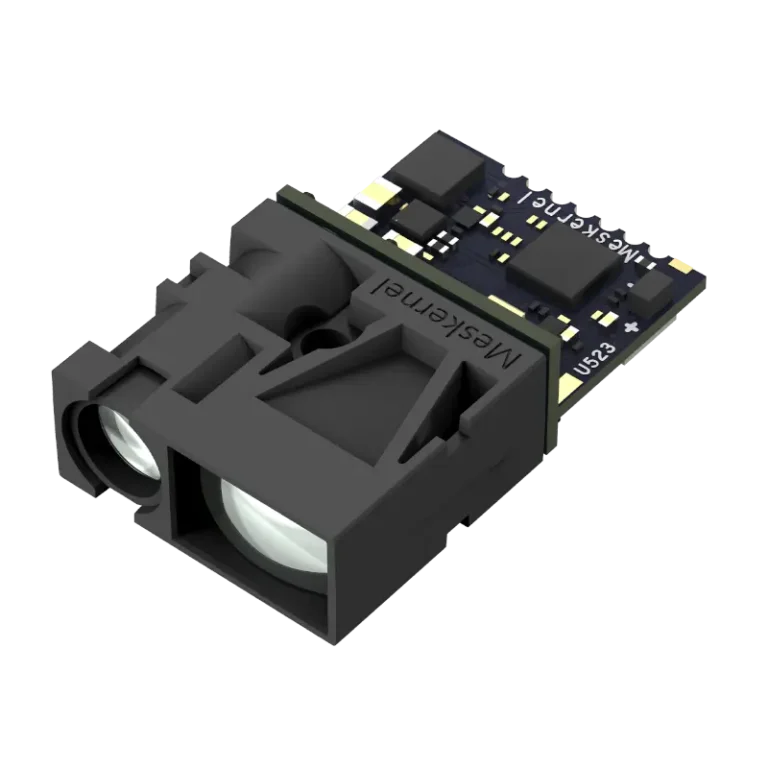

LDL-T 100Hz Distance Detection Sensor
