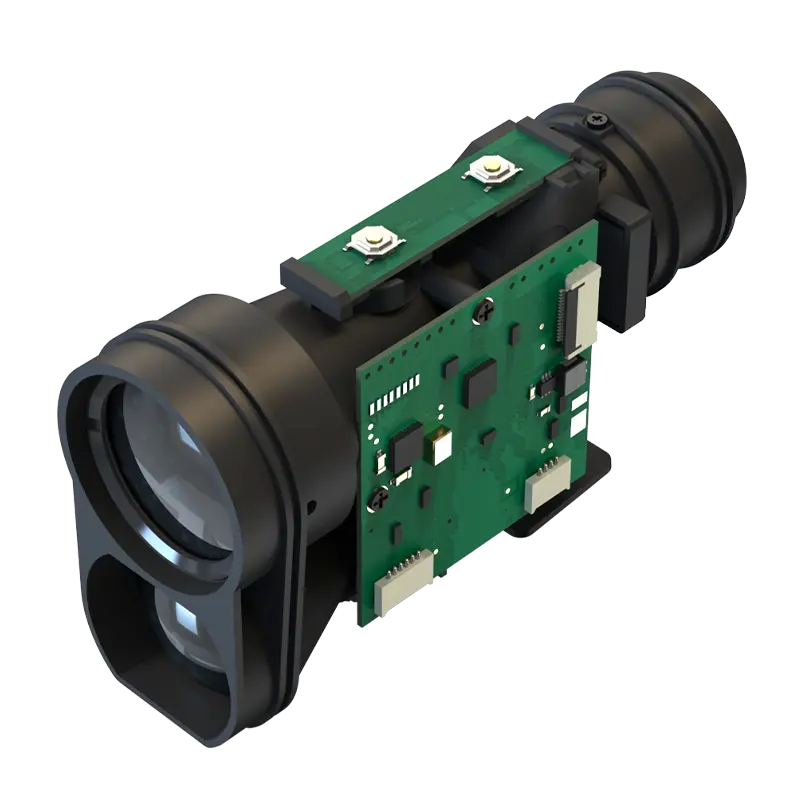

PTFG 3000m Long Range Distance Sensor

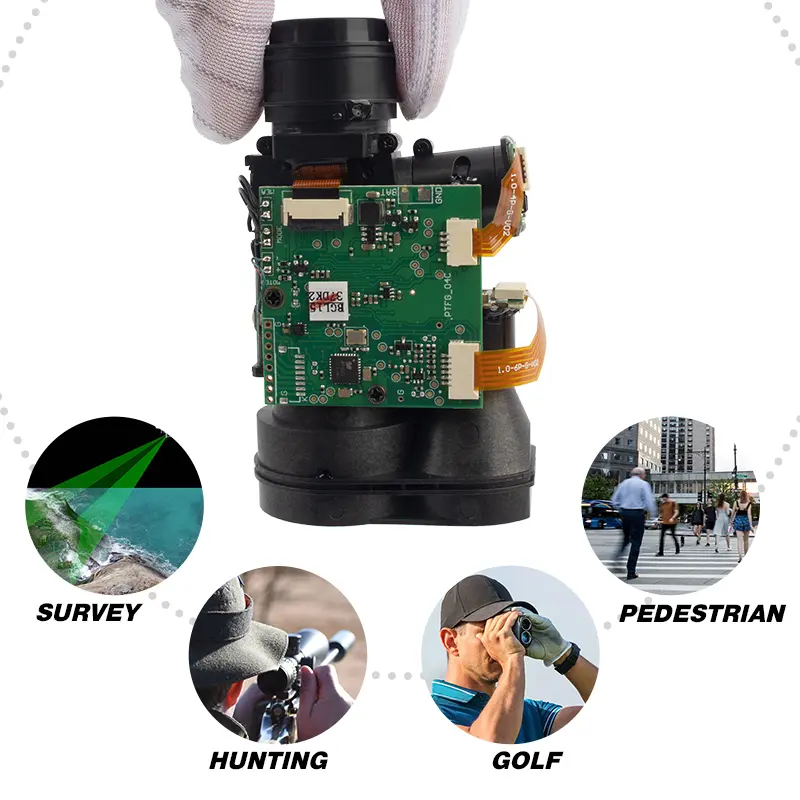

PTFG 3000m Long Range Distance Sensor - Image 2
PTFG 3000m Long Range Distance Sensor - Image 3
Categories:

PTFG 3000m Long Range Distance Sensor

Model:

PTFG

 / Custom OEM & ODM available

★★★★★
  • Customizable Measurement Range & Frequency — Adjustable sensing distance and update rate to match your exact application.
  • Flexible Interface & Communication — TTL / UART / RS-485 / RS-232 / CAN and more, configurable to your system.
  • Rugged, IP-Rated Housing — Industrial aluminum enclosures with customizable IP protection, built for harsh environments.
Range

3 – 3 000 m

Accuracy

±1 m

Frequency

1 – 3 Hz

Weight

Request a Quote

In Stock : Yes  ·  Lead time : 7–15 days  ·  MOQ : 1 pc (OEM from 500)

Key Specifications

Range

3 – 3 000 m

Accuracy

±1 m

Frequency

1 – 3 Hz

Interface

UART / RS485 / RS232

Laser Class

905 nm, Class I

IP Rating

IP54 ~ IP68

Dimensions
Housing

Product Overview

This PTFG Long Range Distance Sensor Measures 3–3000m at 70% reflectivity with ±1m accuracy and 0.1m resolution. Powered by 3.3V DC, UART output, 905nm Class 1 laser. Compact (92×54×33mm, ~60g). Ideal for long-range distance sensing.

20+ years laser ranging expertise
In-house R&D & manufacturing
Strict quality control & calibration
Fast response & global delivery

Product Diagram

Technical Reference

Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.

📋

Full Parameters

LDL-S Parameters

Performance, optical, electrical & communication parameters at a glance

🔌

Wiring Diagram

Laser measurement module → control device connection (with pull-up resistors)

Downloads

Pick the document you need and we’ll email it to you directly. All files are sent manually by our team — usually
within 1 business day.
📄

Datasheet

Full specifications
📘

User Manual

Setup & wiring
⬇

Product Catalog

Selection Guide

Request a file

Select the document you need and we’ll email it to you directly — usually within 1 business day.

Download

🔒 Your information is only used to deliver the requested file.
