PTFS 200Hz Fast Laser Ranging Sensor
PTFS 200Hz Fast Laser Ranging Sensor - Image 2
PTFS 200Hz Fast Laser Ranging Sensor - Image 3
PTFS 200Hz Fast Laser Ranging Sensor - Image 4
Categories:

PTFS 200Hz Fast Laser Ranging Sensor

Model:

PTFS

 / Custom OEM & ODM available

★★★★★
  • Customizable Measurement Range & Frequency — Adjustable sensing distance and update rate to match your exact application.
  • Flexible Interface & Communication — TTL / UART / RS-485 / RS-232 / CAN and more, configurable to your system.
  • Rugged, IP-Rated Housing — Industrial aluminum enclosures with customizable IP protection, built for harsh environments.
Range

0 – 100 m

Accuracy

±1 m

Frequency

200 Hz

Weight

30g

Request a Quote

In Stock : Yes  ·  Lead time : 7–15 days  ·  MOQ : 1 pc (OEM from 500)

Key Specifications

Range

0 – 100 m

Accuracy

±1 m

Frequency

200 Hz

Interface

UART / RS485 / RS232

Laser Class

905 nm, Class I

IP Rating
Dimensions

43×35×21 mm

Housing

Product Overview

PTFS 200Hz Fast laser ranging sensor with 905nm Class 1 eye‑safe laser, 100m range, 200Hz sampling rate, 43×35×21mm, and 30g. Easy integration for drones, robots, and dynamic monitoring.

20+ years laser ranging expertise
In-house R&D & manufacturing
Strict quality control & calibration
Fast response & global delivery

Product Diagram

Technical Reference

Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.

📋

Full Parameters

LDL-S Parameters

Performance, optical, electrical & communication parameters at a glance

🔌

Wiring Diagram

Laser measurement module → control device connection (with pull-up resistors)

Downloads

Pick the document you need and we’ll email it to you directly. All files are sent manually by our team — usually
within 1 business day.
📄

Datasheet

Full specifications
📘

User Manual

Setup & wiring
⬇

Product Catalog

Selection Guide

Request a file

Select the document you need and we’ll email it to you directly — usually within 1 business day.

Download

🔒 Your information is only used to deliver the requested file.

Related Products

TS1224 1000m Laser Time-of-flight Sensor
905 nm, Class I

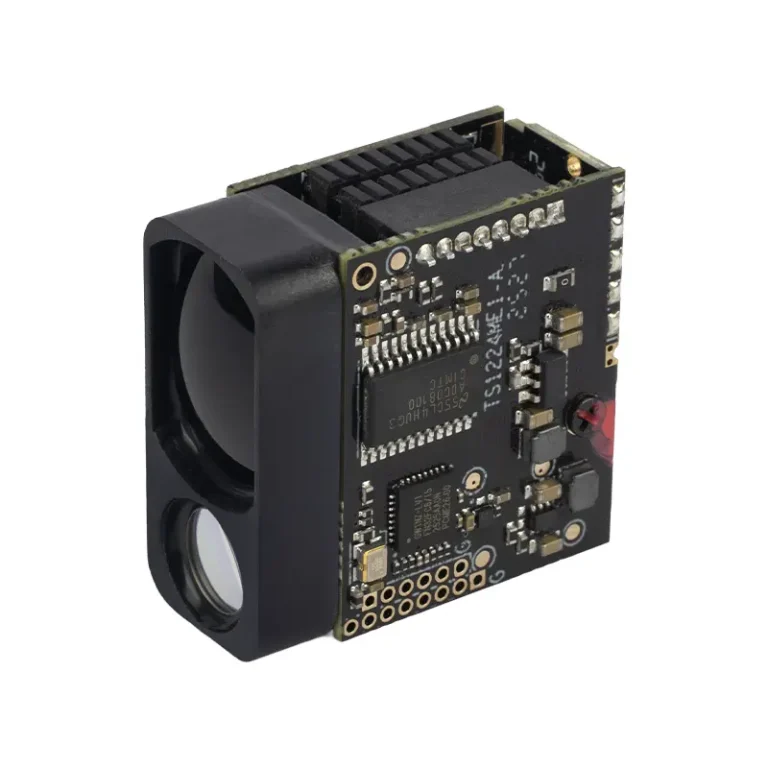

TS1224P 1000m Far-range Laser Ranging Sensor
905 nm, Class I

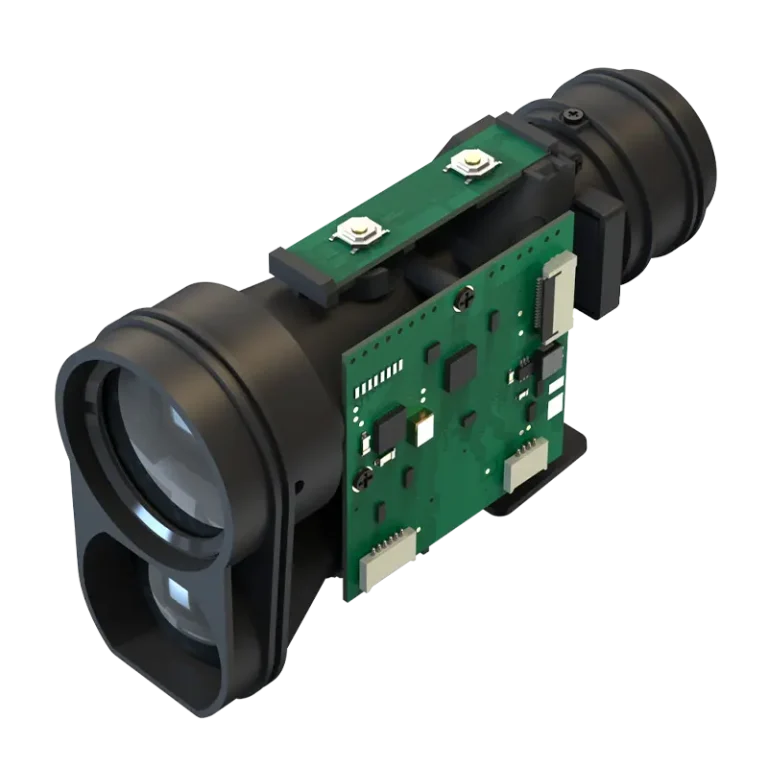

PTFG 3000m Long Range Distance Sensor
