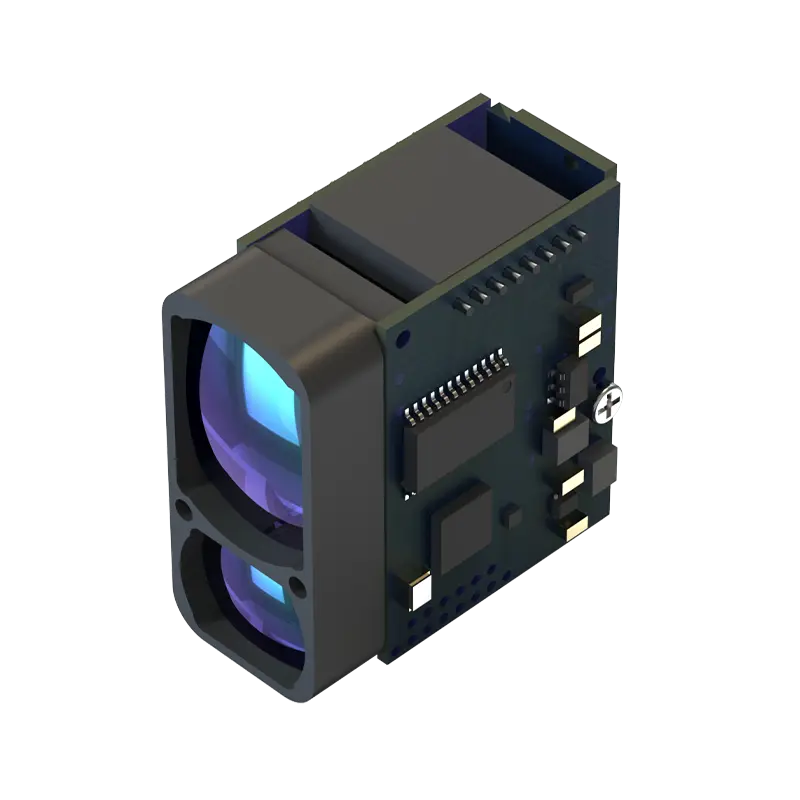

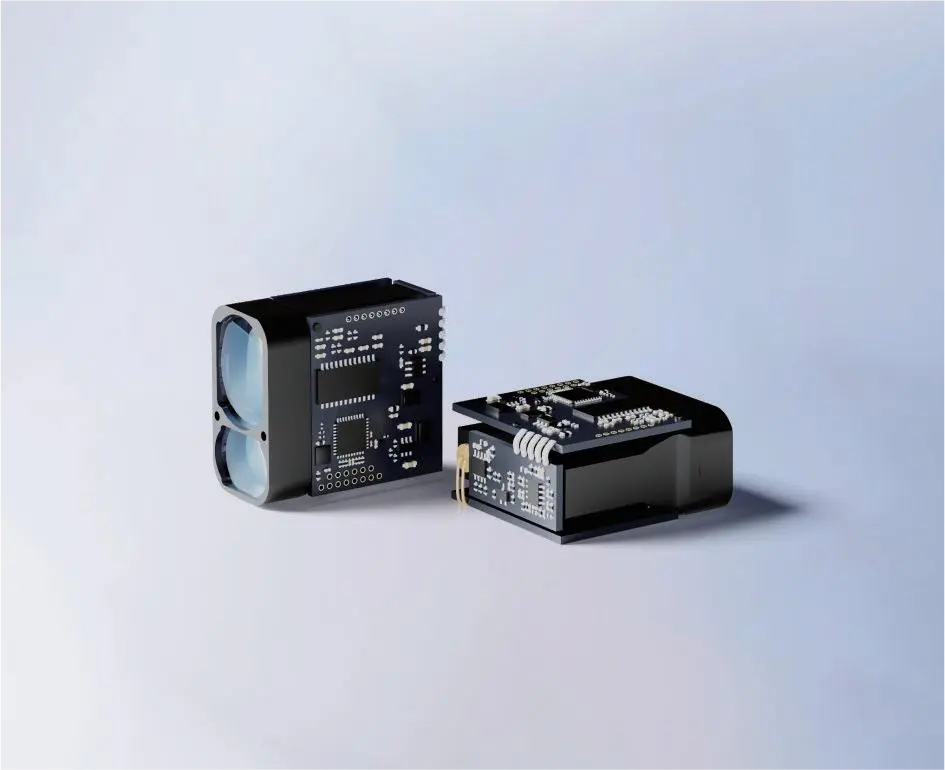

TS1224 1000m Laser Time-of-flight Sensor

Model:

TS1224

 / Custom OEM & ODM available

★★★★★
  • Customizable Measurement Range & Frequency — Adjustable sensing distance and update rate to match your exact application.
  • Flexible Interface & Communication — TTL / UART / RS-485 / RS-232 / CAN and more, configurable to your system.
  • Rugged, IP-Rated Housing — Industrial aluminum enclosures with customizable IP protection, built for harsh environments.
Range

5 – 1 000 m

Accuracy

±1 m

Frequency

2 – 5 Hz

Weight

Request a Quote

In Stock : Yes  ·  Lead time : 7–15 days  ·  MOQ : 1 pc (OEM from 500)

Key Specifications

Range

5 – 1 000 m

Accuracy

±1 m

Frequency

2 – 5 Hz

Interface

UART / RS485 / RS232

Laser Class

905 nm, Class I

IP Rating
Dimensions

25.87*24.6*13.3mm

Housing

Product Overview

This laser time-of-flight sensor enables non-contact distance measurement from 5 m to 1000 m with ±1 m accuracy. Operating at 905 nm, it features a 5 m blind zone and a compact 26×24.6×11.4 mm form factor. Equipped with UART/TTL 3.3 V interface, the TS1224 is ideal for drones and robotics.

20+ years laser ranging expertise
In-house R&D & manufacturing
Strict quality control & calibration
Fast response & global delivery

Product Diagram

Technical Reference

Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.

📋

Full Parameters

LDL-S Parameters

Performance, optical, electrical & communication parameters at a glance

🔌

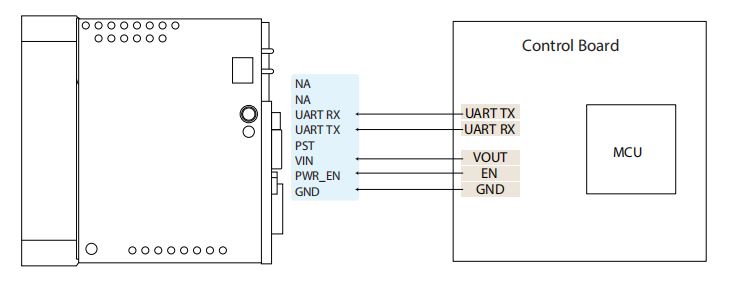

Wiring Diagram

Laser measurement module → control device connection (with pull-up resistors)

Downloads

Pick the document you need and we’ll email it to you directly. All files are sent manually by our team — usually
within 1 business day.
📄

Datasheet

Full specifications
📘

User Manual

Setup & wiring
⬇

Product Catalog

Selection Guide

Request a file

Select the document you need and we’ll email it to you directly — usually within 1 business day.

Download

🔒 Your information is only used to deliver the requested file.
