Model:
/ Custom OEM & ODM available
Weight
In Stock : Yes · Lead time : 7–15 days · MOQ : 1 pc (OEM from 500)

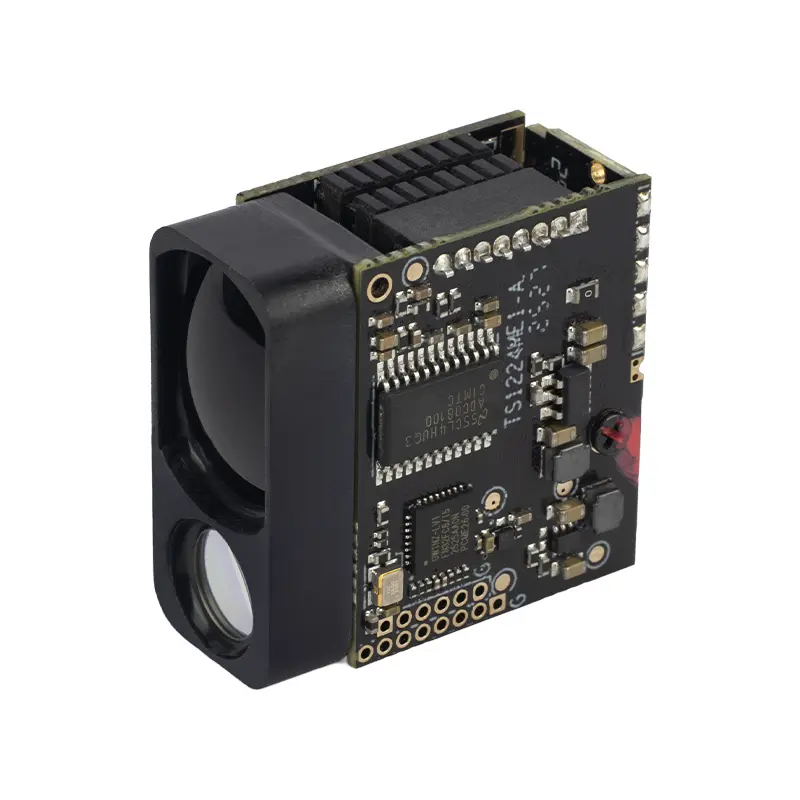

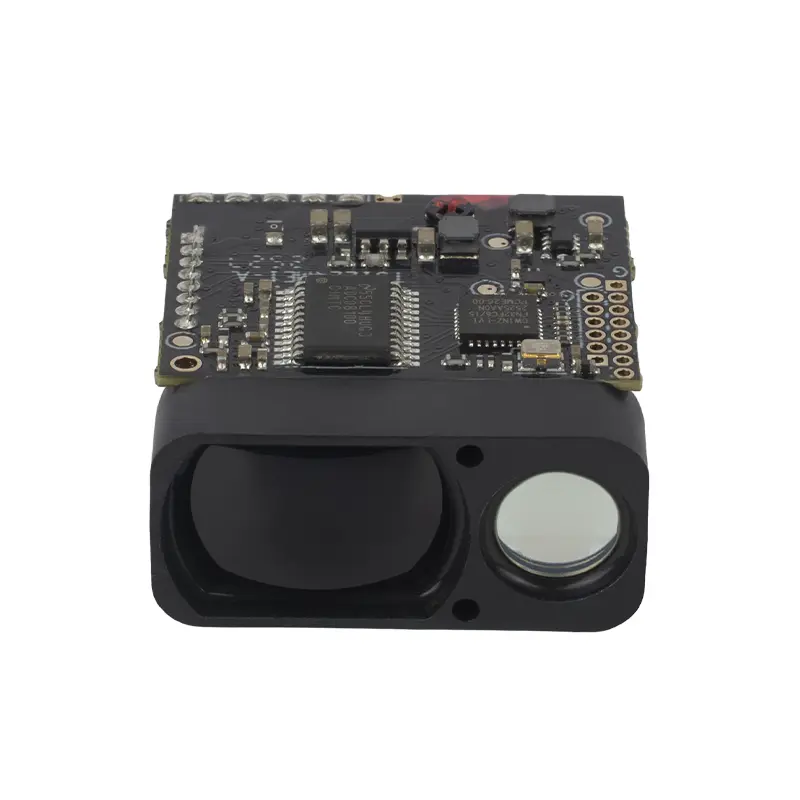

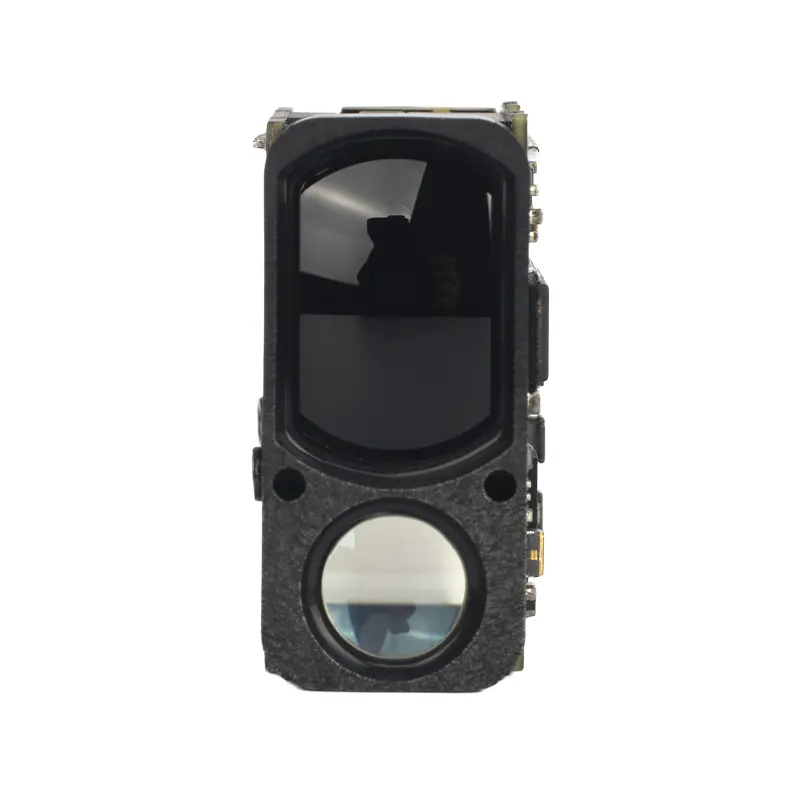

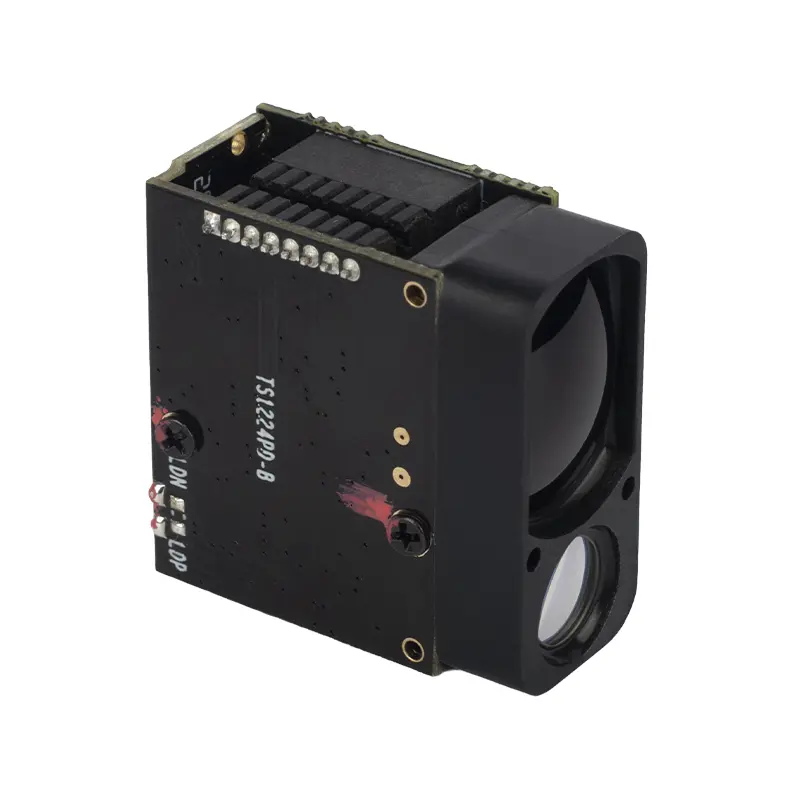

This long distance laser sensor measures 5–800 m (1000 m version optional). Featuring a 905 nm Class 1 eye-safe laser, it supports UART (TTL 3.3 V, 115200 bps) with a 3.3–5 V supply. Measurement rate: 1–3 Hz. Operating temperature: -20 to 50 °C. The compact housing measures 25.72 × 24.60 × 13.40 mm and weighs only 10 g. RoHS compliant.
Pin definition, wiring and full parameter reference. Click any diagram to enlarge it for detailed viewing.
Performance, optical, electrical & communication parameters at a glance
Laser measurement module → control device connection (with pull-up resistors)
Selection Guide
